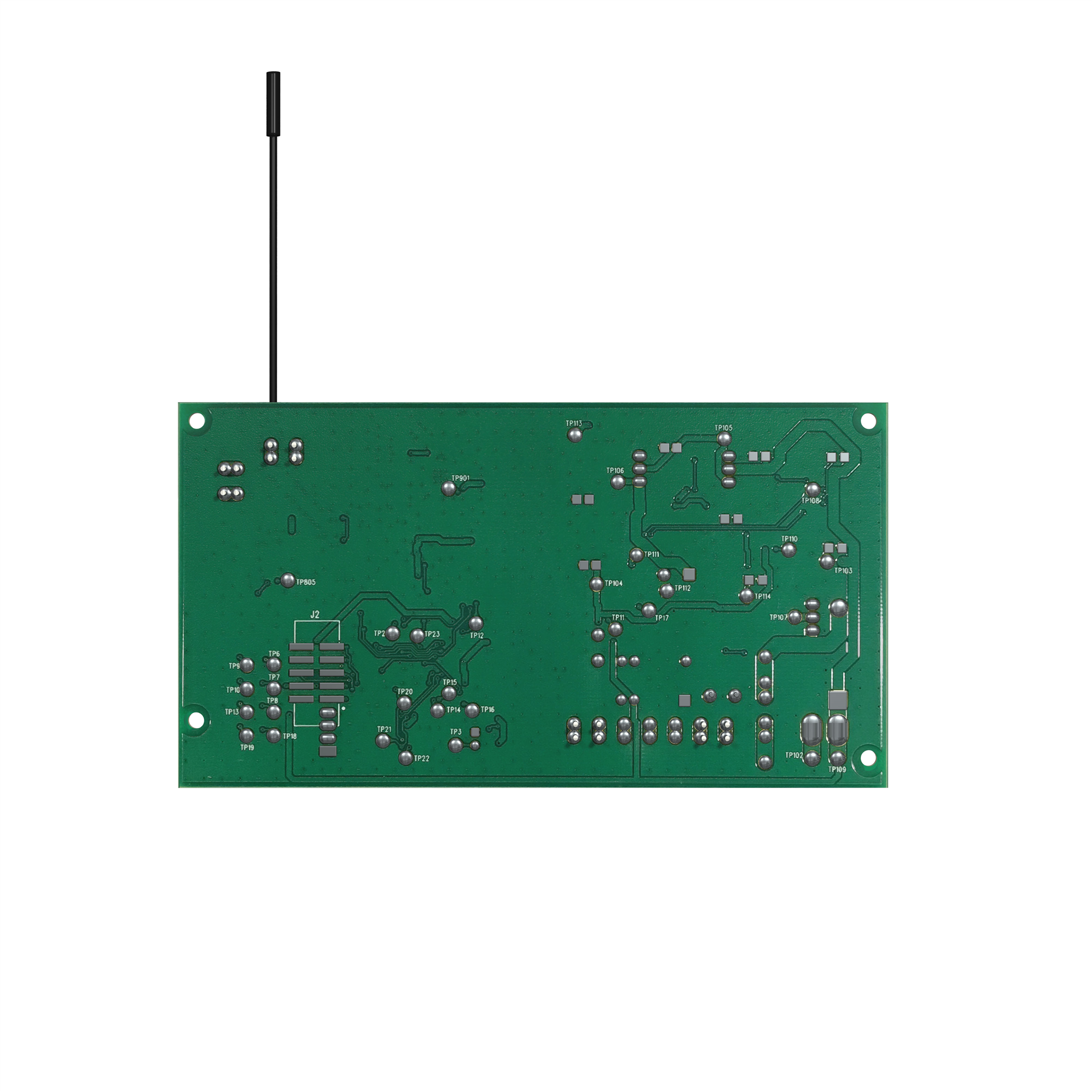

RPT1
Features
Extends the range of wireless communications
Untitled
Built-in transceiver
1 programmable 5A relay output
Select which zone, PGM and / or keypad signals are repeated
Supports all Magellan transmitters (including two-way)
Fully supervised by panel or console
Signal strength display
Universal input (N.O. / N.C.)
RF jamming supervision
In-field firmware upgradeable via 307USB
Compatible with Magellan Series and RTX3 (RPT1 is not supported by the RTX3 when connected to an EVO panel)
Voltage Input | 16 Vac, 20 VA minimum |
Battery | Backup battery DC: 12 Vdc 5 Ah battery |
RF Frequency | 433 or 868 MHz |
Current Consumption | 65 mA |
Wireless Range | Typical residential environment 75m (240 ft) with 433 MHz 50m (160 ft) with 868 MHz |
Number of Outputs | 1 PGM N.O. / N.C. 5A relay, 60 Vdc / 120 Vac maximum |
Operating Temperature | 0 to 50 °C (32 to 122 °F) |
Metal Boxes | Fits in 20 x 25.5 x 7.6 cm (8 x 10 x 3 in.) and 28 x 28 x 7.6 cm (11x 11 x 3 in.) metal boxes |
Dimensions | 34 x 14 cm (12.6 x 5.5 in.) |
Built-in transceiver
1 programmable 5A relay output
Select which zone, PGM and / or keypad signals are repeated
Supports all Magellan transmitters (including two-way)
Fully supervised by panel or console
Signal strength display
Universal input (N.O. / N.C.)
RF jamming supervision
In-field firmware upgradeable via 307USB
Compatible with Magellan Series and RTX3 (RPT1 is not supported by the RTX3 when connected to an EVO panel)
Certificate:
CE
RCM
R-NZ
