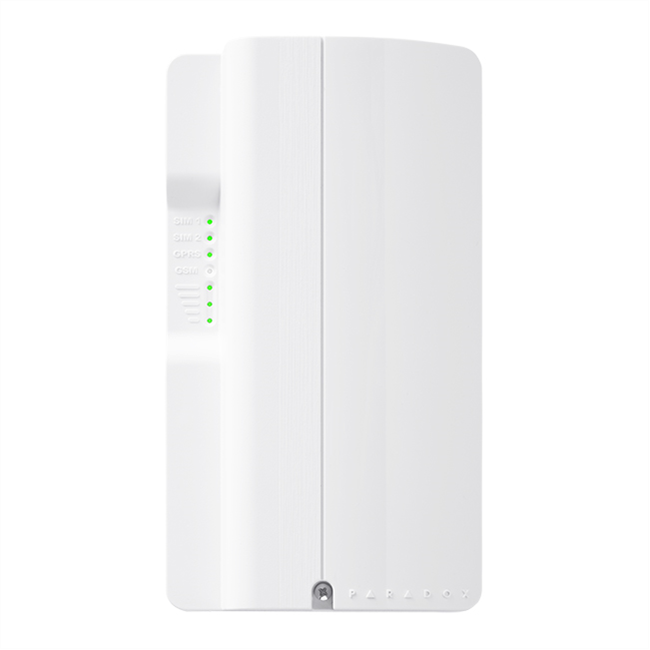

• Front
  • Front + Swan

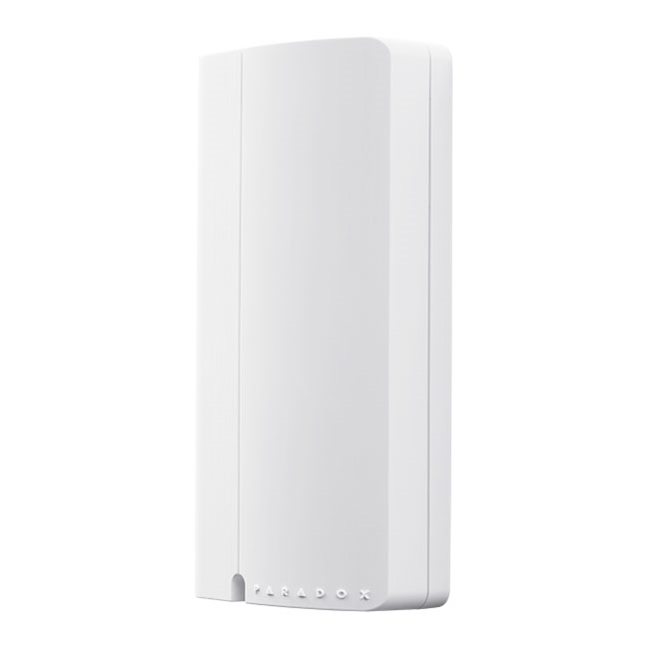

  • Angle

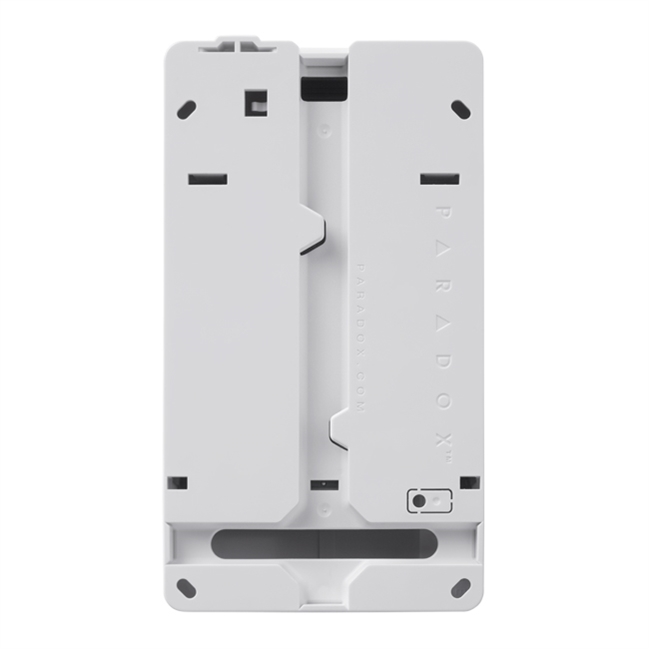

  • Back

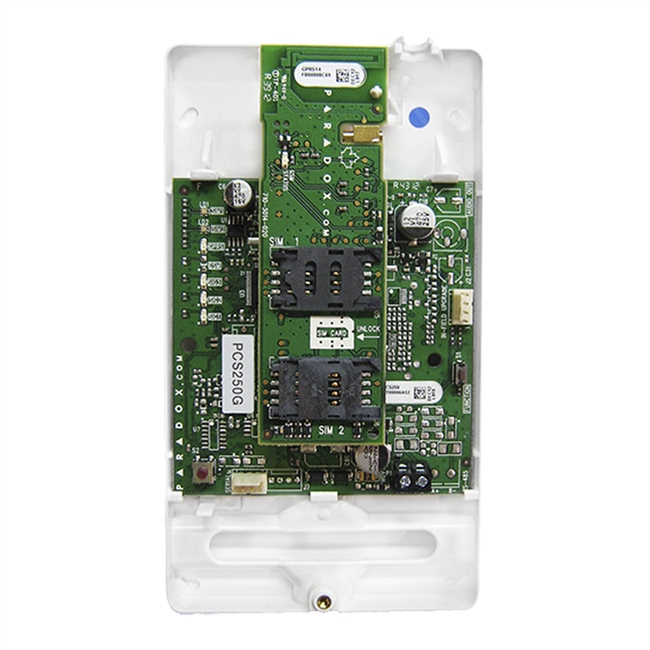

  • Inside

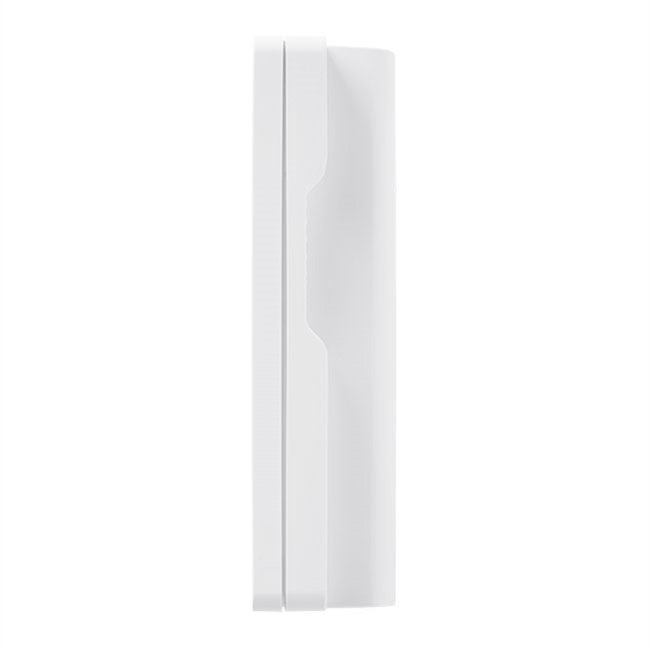

  • Side Right
  • Side Left
  • Front
  • Front + Swan
  • Angle
  • Back
  • Inside
  • Side Right
  • Side Left
 out of
Back to catalog

PCS250G

Features
Compact, sleek design
Untitled

The PCS250G GPRS Communicator Module, leverages the GPRS data channel to
provide wireless communication solutions for Paradox control panels. It offers reliable
and fast communication between properties and their respective monitoring stations,
the PCS250G is the vital link that keeps you connected.

Using cellular networks, the PCS250G reports to the monitoring station's automation
software via GPRS, ensuring that all communication is fast, reliable, and stable.
The PCS250G can be used as a backup to a traditional landline, or as a primary
communicator where no landline is available. It also adds remote home control
capabilities to a system, allowing you to arm / disarm with a simple text message (SMS).
Feel safe by taking control of your system, wherever you are.

With its contemporary design, and a modern hi-tech finish, the PCS250G GPRS
Communicator Module enables Paradox systems to be remotely controlled, continuously
monitored, and reliably connected at all times.


Untitled

Power Class

Class 4 (2W at 850 / 900 MHz)

Class 2 (1W at 1800 / 1900 MHz)

Antenna Bandwidth

70 / 80 / 140 / 170 MHz

Antenna Gain

<3 dBi; impedance 50 ohm

<2W peak power

Voltage Input

12 Vdc nominal

Current Consumption

100 mA standby, average 450 mA (1.2A peak)

during GPRS / GSM transmission

Encryption

128-bit (MD5 and RC4) and 256-bit (AES)

SMS Protocol

8-bit (IRA: ITU-T, 50) or 16-bit (UCS2 ISO / IEC10646)

Humidity

5 to 90%

Operating Temperature

0 to 50 °C (32 o 122 °F)

Dimensions / Weight

17.2 x 9.8 x 4.4 cm (6.8 x 3.9 x 1.7 in.) / 200g (7.05 oz)






Instant notification of panel supervision loss
Easily Arm / Disarm the system via SMS
Arm or disarm the system via text message (SMS) to the PCS250G
Report alarms via text messages to up to 16 cellular phone numbers
Supports 2 cellular provider SIM cards for provider redundancy
Report events to the IPR512 GPRS / IP Monitoring Receiver and / or IPRS-7 PC Receiver Software
Simple installation with 4-wire serial connection
Push notification to Insite GOLD app
Messages are secured with 256-bit (AES) encryption
Tamper switch support
Optional rod antenna can be installed up to 18m (60 ft) from the module using optional antenna cable extensions depending on the local signal strength
Compatible with EVO Series, Spectra SP Series, MG5000 and MG5050
Certificate:
CE EN 50131 EN 50130-5 EN 50136 EN 17065
