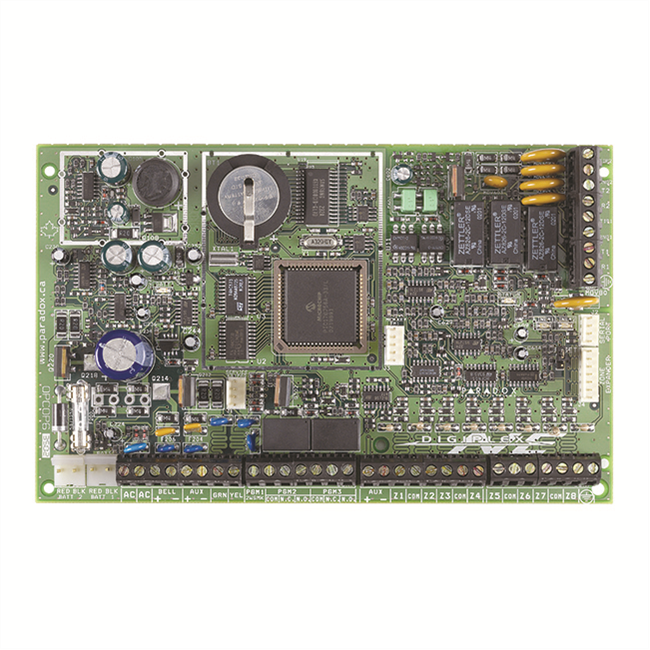

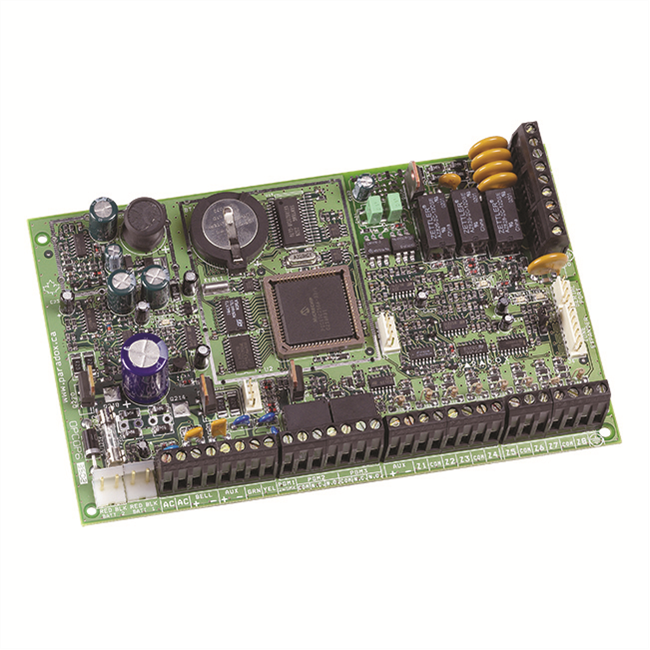

DGP-NE96
Digiplex 96-Zone Control Panel
Features
8 on-board zone inputs (16 with zone doubling)
Expandable to 96 zones via 4-wire combus
3 on-board PGM outputs
PGM1 can be used as a 2-wire smoke input
1.7A switching power supply
1 supervised bell output and 1 supervised auxiliary output
1 supervised telephone line
Built-in real-time clock backup battery (no DGP2-TM1 required)
Adjustable communication speed (normal / fast) for large installations
Connect modules up to 900m (3000 ft) using 18 AWG or 300m (1000 ft) using 22 AWG
Includes 28 x 28 x 7.6 cm (11 x 11 x 3 in.) metal box
