EVO48

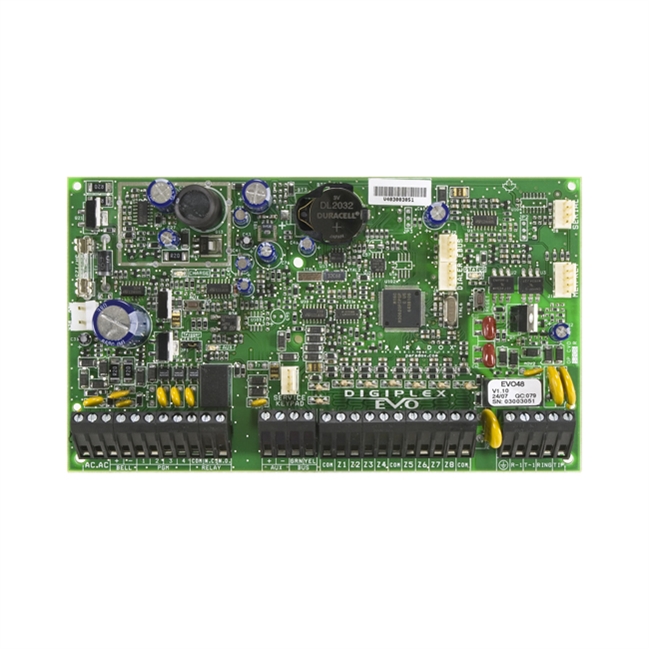

Digiplex EVO 48-Zone Control Panel
Features
8 on-board zones (16 with zone doubling)
Expandable to 48 zones via 4-wire combus
2 on-board solid-state PGM outputs (+3 optional), negative or positive triggering
PGM1 can be used as a 2-wire smoke input
4 partitions
96 user codes
Built-in access control features
Supports up to 127 expansion bus modules
Supports IP100 IP Module
Supports PCS100 GSM and GPRS Module
Supports VDMP3 Voice Module
Supports up to 96 remote controls with one MG-RTX3
V2.10 supports REM3 remote control
Program remote controls using the master or installer codes
1.7A switching power supply
1024 events buffered
Patented 2 opto coupler dialer circuit - the most reliable dialer in the industry
1 supervised bell output, auxiliary output and telephone line
Push button software reset (reset to default values and restart)
Push button to activate or deactive the Auxiliary output
The EVO Series share the same programming for easy panel substitution
Built-in real-time clock backup battery
Automatic Daylight Savings Time feature
Compatible with NEware software
In-field firmware upgradeable via 307USB and WinLoad
Fits in a 28 x 28 x 7.6 cm (11 x 11 x 3 in.) metal box
