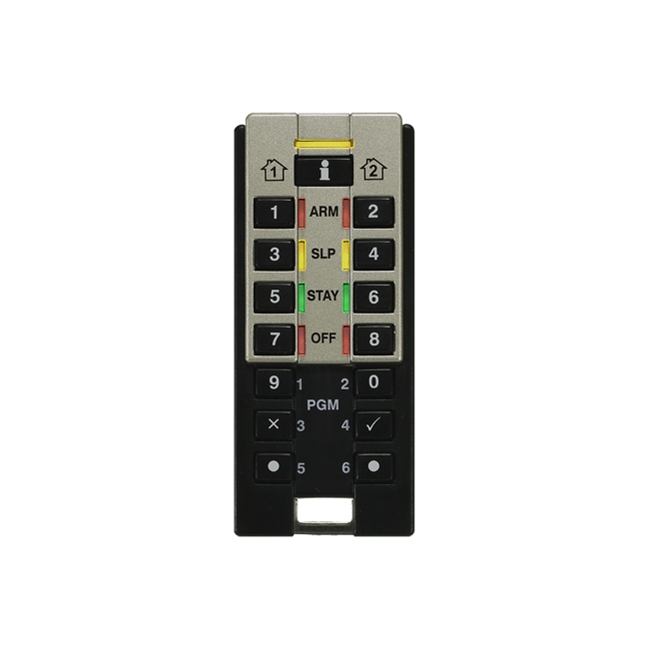

• Front

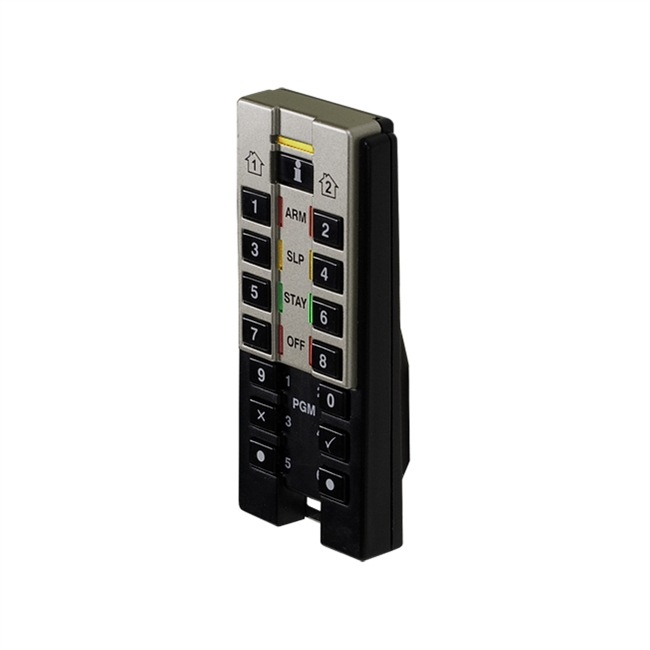

  • Angle

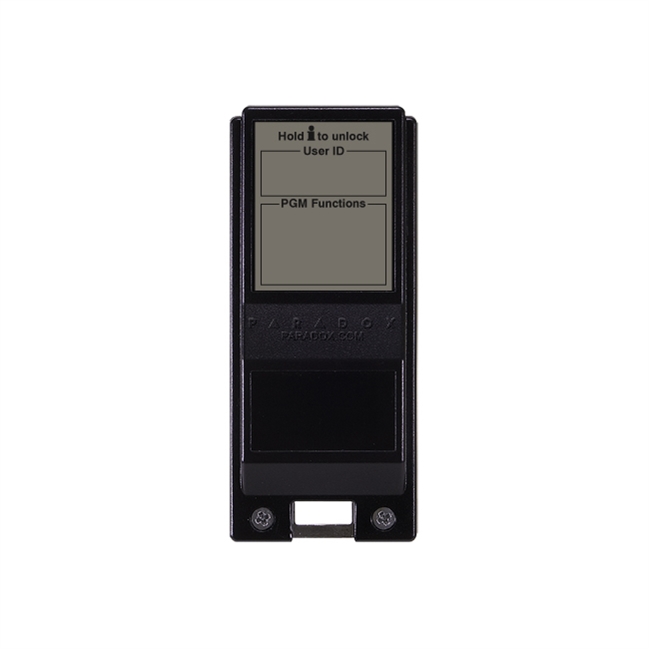

  • Back

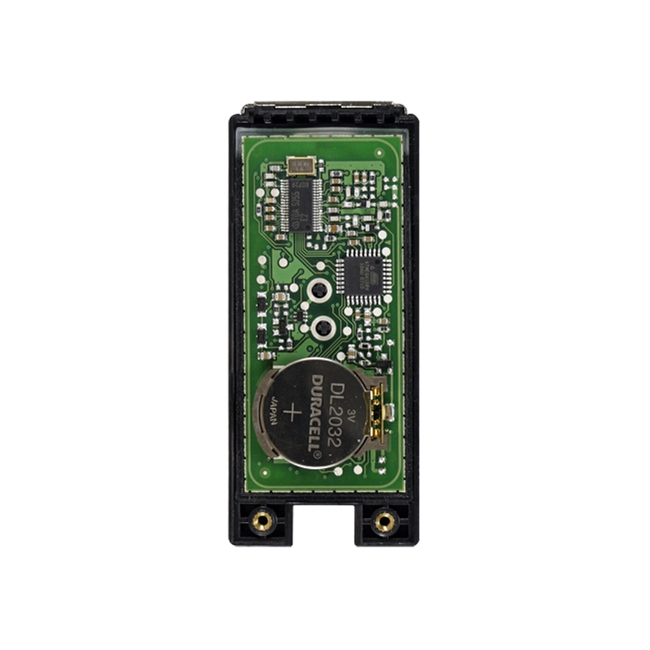

  • Inside

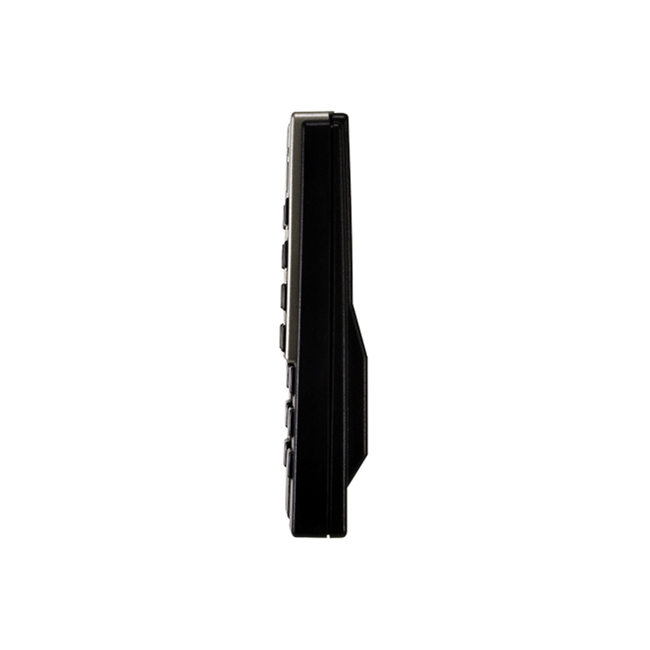

  • Side
  • Front
  • Angle
  • Back
  • Inside
  • Side
 out of
Back to catalog

REM3

Features
Compact, water-resistant design
Untitled

RF Frequency

433 or 868 MHz

Battery Type

1 x 3V lithium battery (CR2032)

Wireless Range

Typical residential environment

30m (100 ft) with MG6520

45m (150 ft) with MG5000 / MG5050

Humidity

5 to 90%

Operating Temperature

0 to 50 °C (32 to 120 °F)

Dimensions / Weight

8 x 3.4 x 1.4 cm (3.1 x 1.3 x 0.6 in.) / 32g (1.2 oz)




Controls up to 6 PGMs and/or generate panics
Supports StayD™
Label to identify remote control owner
Provides visual and auditory feedback of system status
Press the Status button to receive system status
Configure which partitions the REM3 arms/disarms
Independent Arm, Sleep, Stay and Off buttons and LED display per partition
System Status Memory: The REM3 will keep the last system status received from the control panel in memory. Momentarily press the Info button to display the last system status - even when out of range. Used to confirm the last action you did on the system while away from the system.
Keypad Mode: Requires code entry
Remote Mode: One-touch arming / disarming
Installer Diagnostic Mode:
Partition 1 LEDs = Signal Strength Display
Partition 2 LEDs = RF Interference Display
Compatible with EVO Series (requires RTX3), SP5500, SP6000, SP65 and SP7000 V3.00 or higher (requires RTX3), and Magellan Series
Certificate:
CE RCM R-NZ EN 50131 EN 50130-5 EN 17065
