SR150
Wireless Siren with Built-in Strobe
Features
Weather-resistant design using a PC / ABS enclosure with UV protection
Untitled
Assign up to 4 sirens per control panel
4-LED signal strength and status display
Battery powered with optional external AC / DC power
Fast alarm response time (4 seconds)
2.5 hour alarm display (strobe flashes every 4 seconds after bell cut-off)
Siren presence supervised by control panel
Siren test mode
Built-in transceiver (433 or 868 MHz)
Dual tamper protection (cover removal, and removal from wall)
In-field firmware upgradeable via 307USB

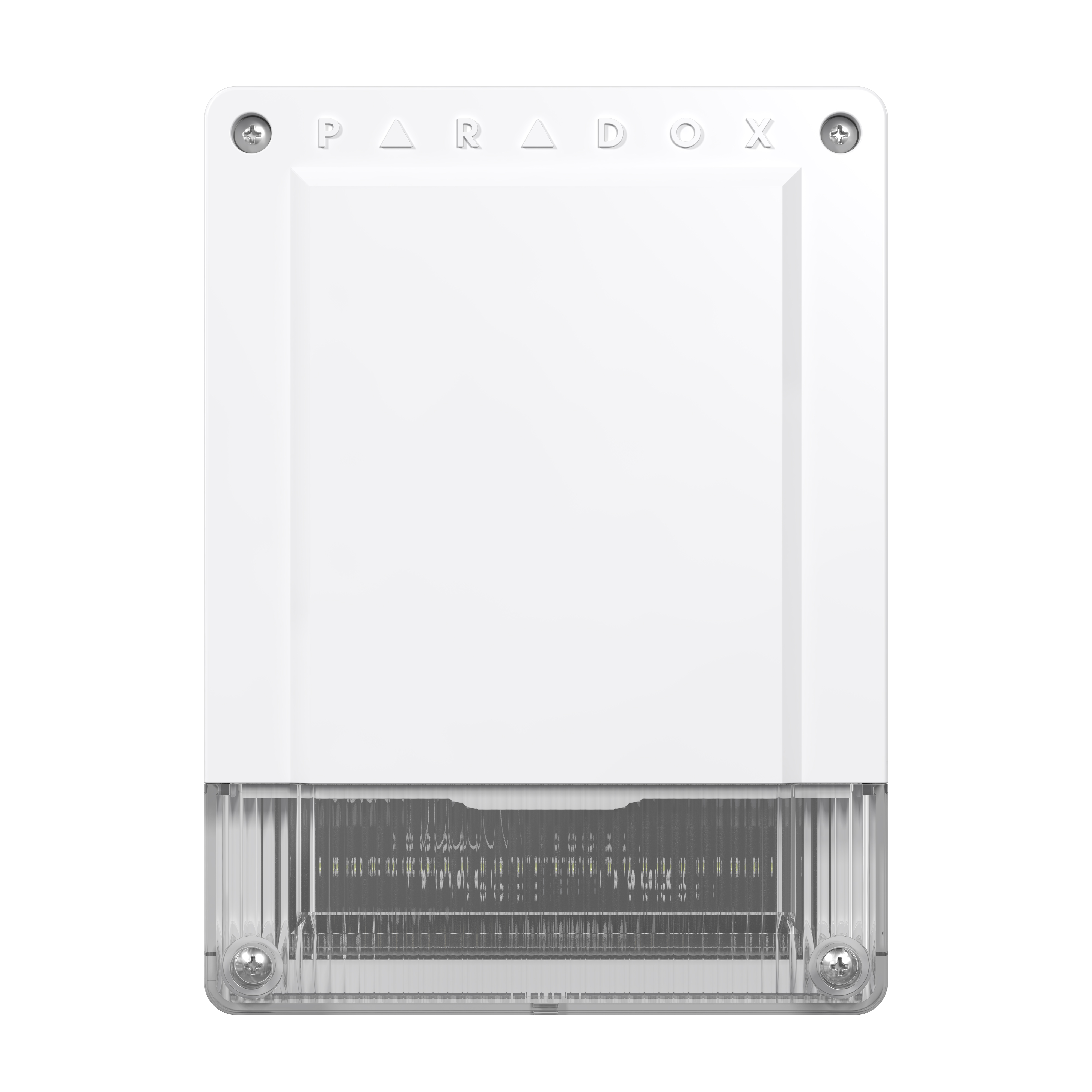

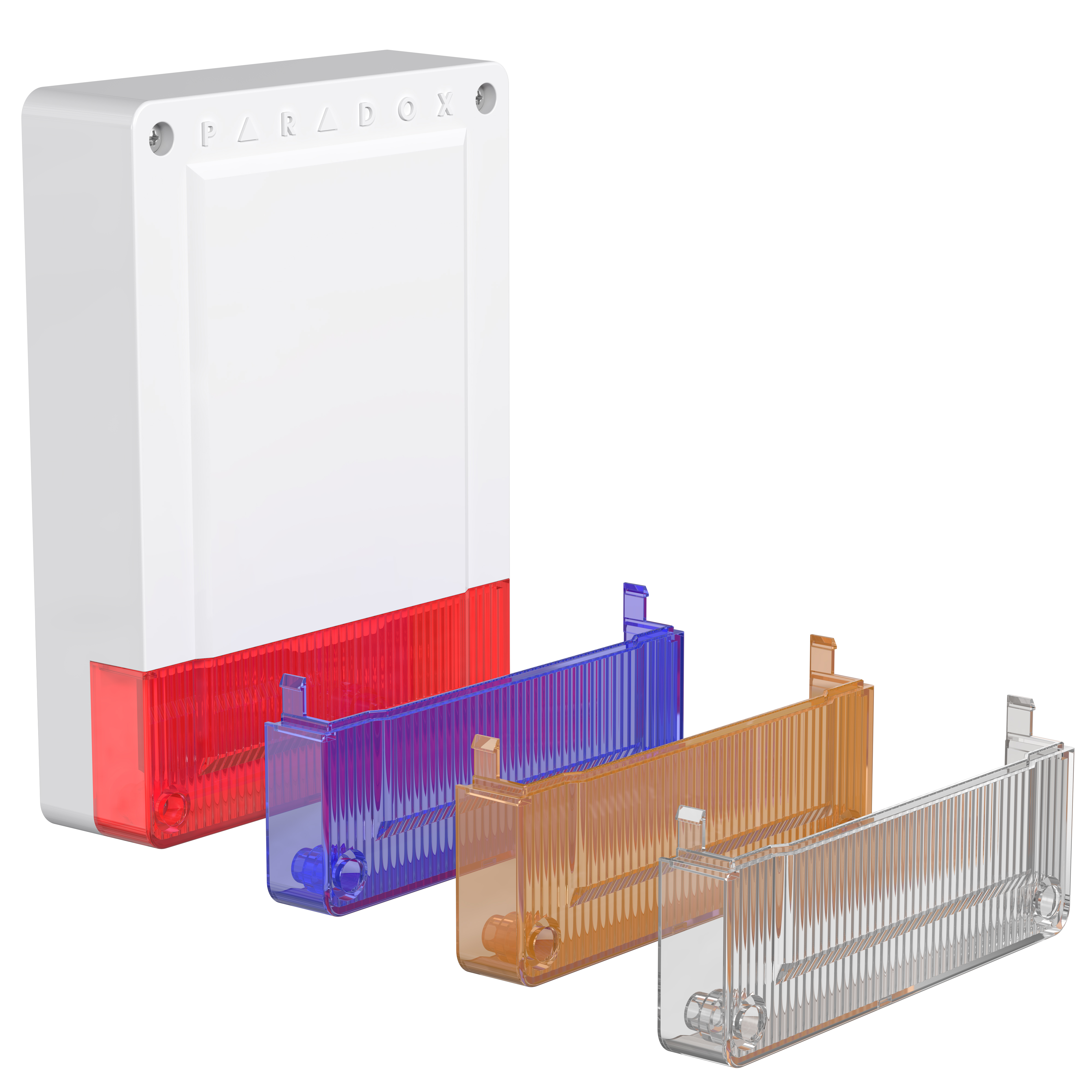

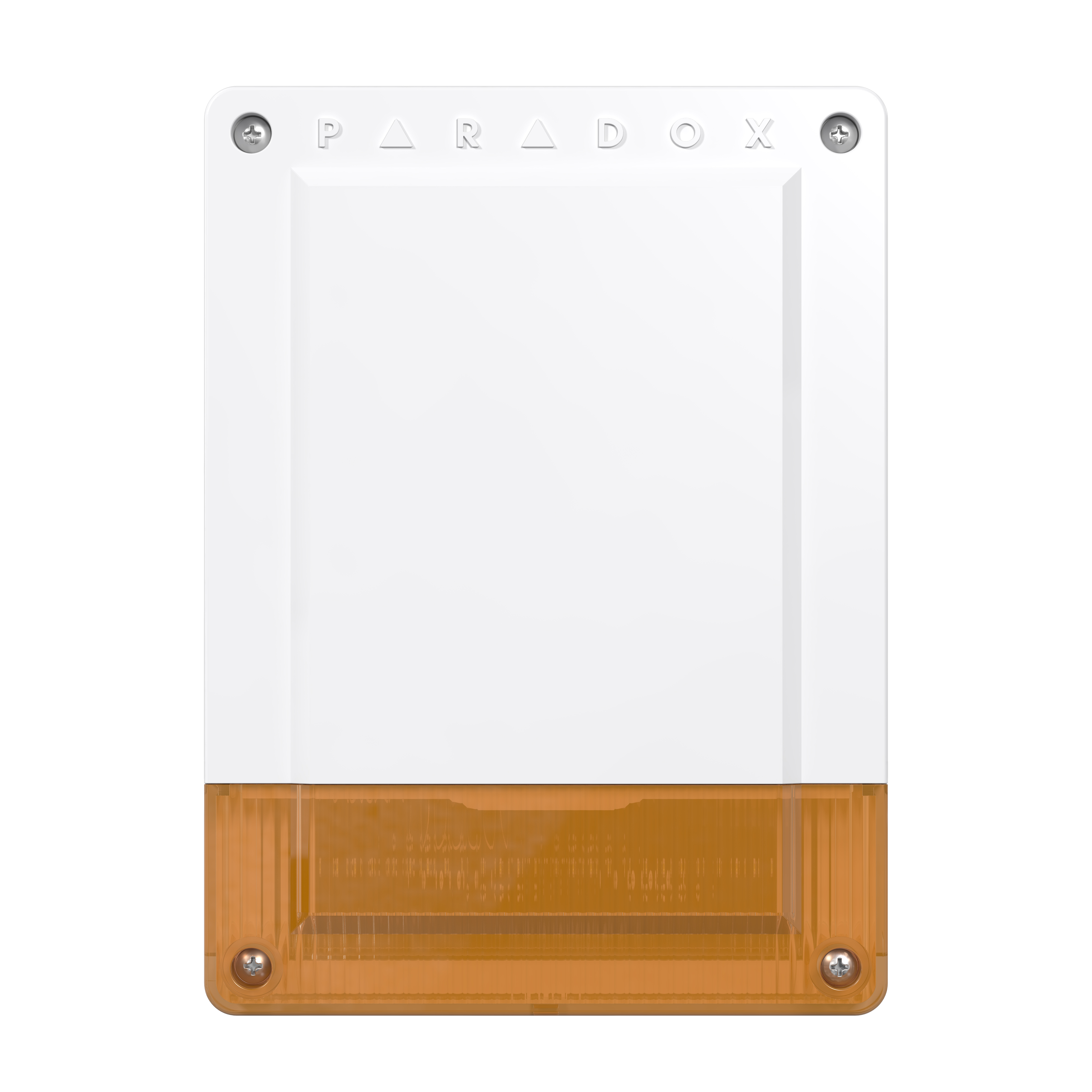

Strobe lens available in 4 colors: red, blue, amber, and clear
Compatible with EVO Series (requires RTX3), SP5500, SP6000, SP65 and SP7000 (requires RTX3), and Magellan Series

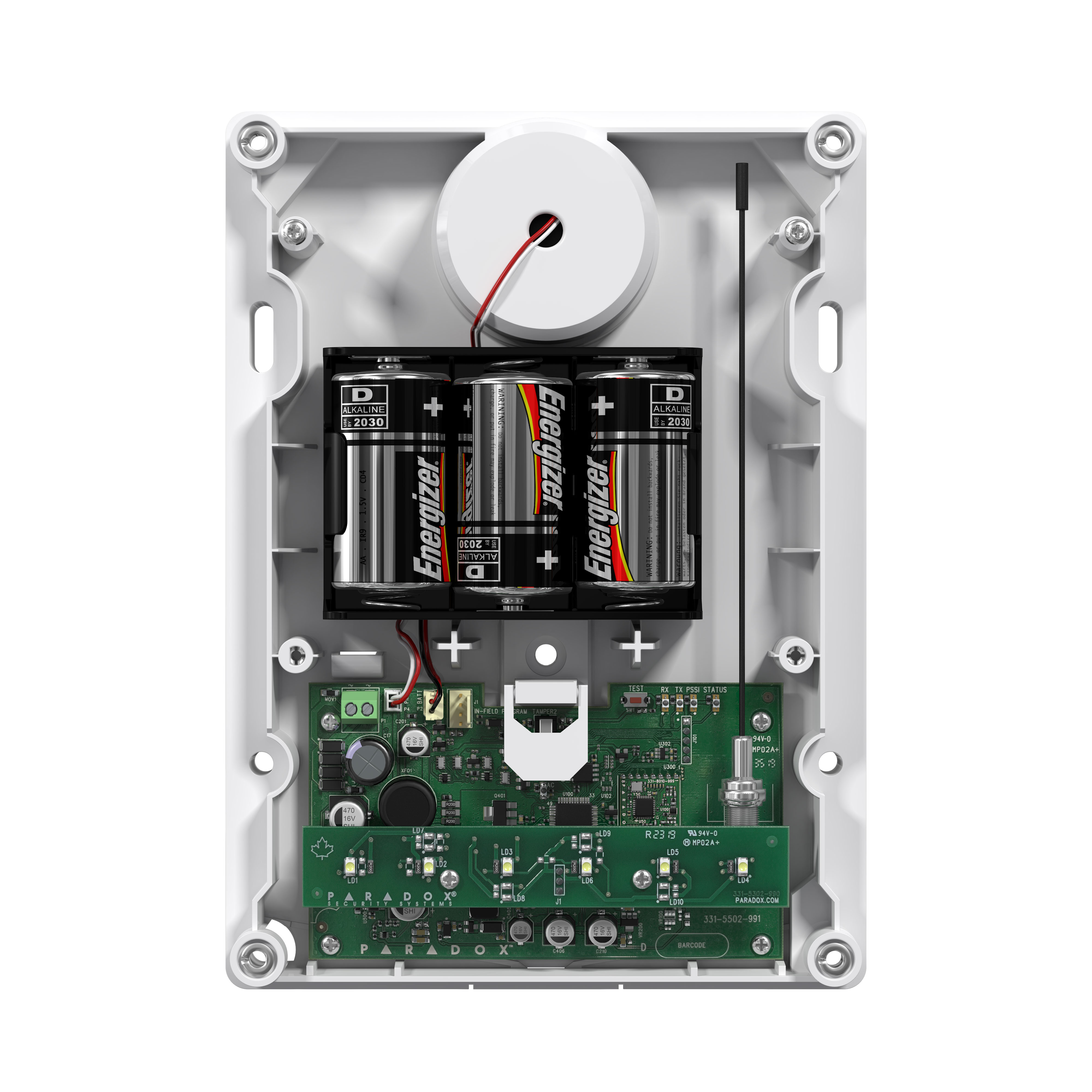

Power Suppy | 3 x D Alkaline batteries (4.5 Vdc) - Optional 8 to 16 Vac / 9 to 20 Vdc external power |
Battery Life | Up to 3 years (typical use) |
Current Consumption | Sleep: 22 uA Standby: 130 uA Alarm: 550 mA |
Wireless Range | Typical residential environment 35m (115 ft) with all-in-one consoles (MG6250) |
Siren | 100 dBA (1 meter) |
Humidity | 93% |
IP Rating | IPX4 |
Operating Temperature | -30° to 50°C (-22° to 122°F) |
Dimensions / Weight | 24 x 6 x 18 cm (9.5 x 2.3 x 7 in.) / 1.08 kg (2.4 lb.) without batteries |
Assign up to 4 sirens per control panel
4-LED signal strength and status display
Battery powered with optional external AC / DC power
Fast alarm response time (4 seconds)
2.5 hour alarm display (strobe flashes every 4 seconds after bell cut-off)
Siren presence supervised by control panel
Siren test mode
Built-in transceiver (433 or 868 MHz)
Dual tamper protection (cover removal, and removal from wall)
In-field firmware upgradeable via 307USB
Strobe lens available in 4 colors: red, blue, amber, and clear
Compatible with EVO Series (requires RTX3), SP5500, SP6000, SP65 and SP7000 (requires RTX3), and Magellan Series
Certificate:
CE
RCM
R-NZ
EN 50131
EN 50130-5
EN 17065
