TM4
Touch Interface Module
Features
Intuitive icon-based user interface via touchscreen with quick menu-driven prompts
Untitled
10.9 cm (4.3 in.) brilliant and vivid widescreen color display
Control PGMs
Customizable labels: zones, areas, users, and PGM outputs
External SD media card slot for uploading custom themes and sounds, photos for use with the slide show function (480 x 272 pixels), and for upgrading firmware
Powerful FPGA processor
1 zone / temperature input used with a detection device or a TEMP07 (External Temperature Sensor) to read outdoor temperature
Clean screen mode: locks screen for easy cleaning
Customized translation done via web application
Please Log in to access all documents
Power Input | 9 to 16 Vdc, 100 mA max. |
Display | 10.9 cm (4.3 in.) widescreen color display (480 x 272 pixel resolution) |

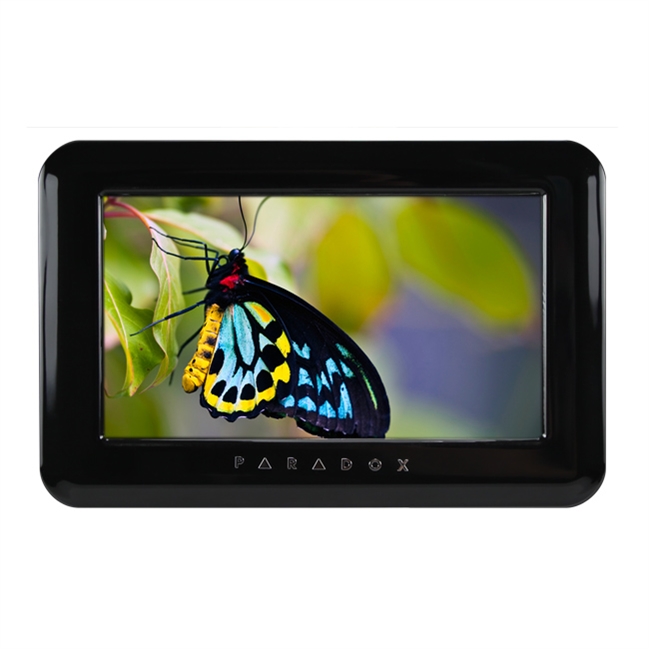

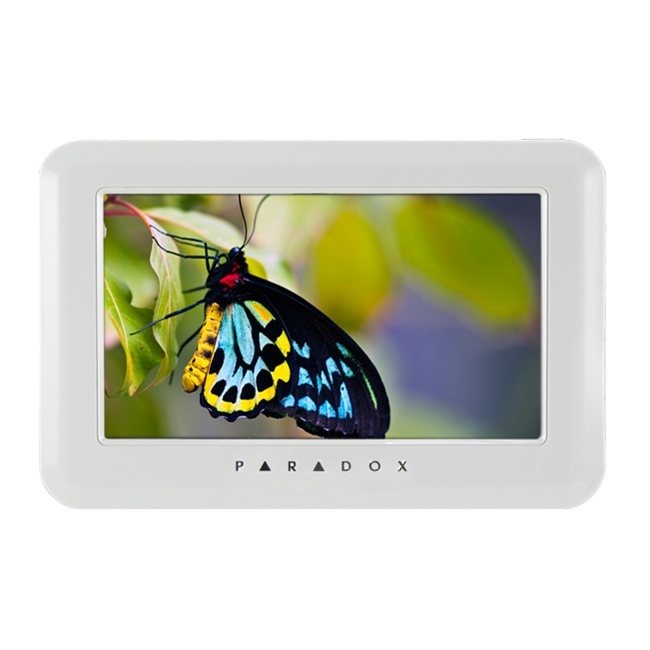

Colors | Available in Piano Mirror Black and Mirror Ivory White |
10.9 cm (4.3 in.) brilliant and vivid widescreen color display
Control PGMs
Customizable labels: zones, areas, users, and PGM outputs
External SD media card slot for uploading custom themes and sounds, photos for use with the slide show function (480 x 272 pixels), and for upgrading firmware
Powerful FPGA processor
1 zone / temperature input used with a detection device or a TEMP07 (External Temperature Sensor) to read outdoor temperature
Clean screen mode: locks screen for easy cleaning
Customized translation done via web application
