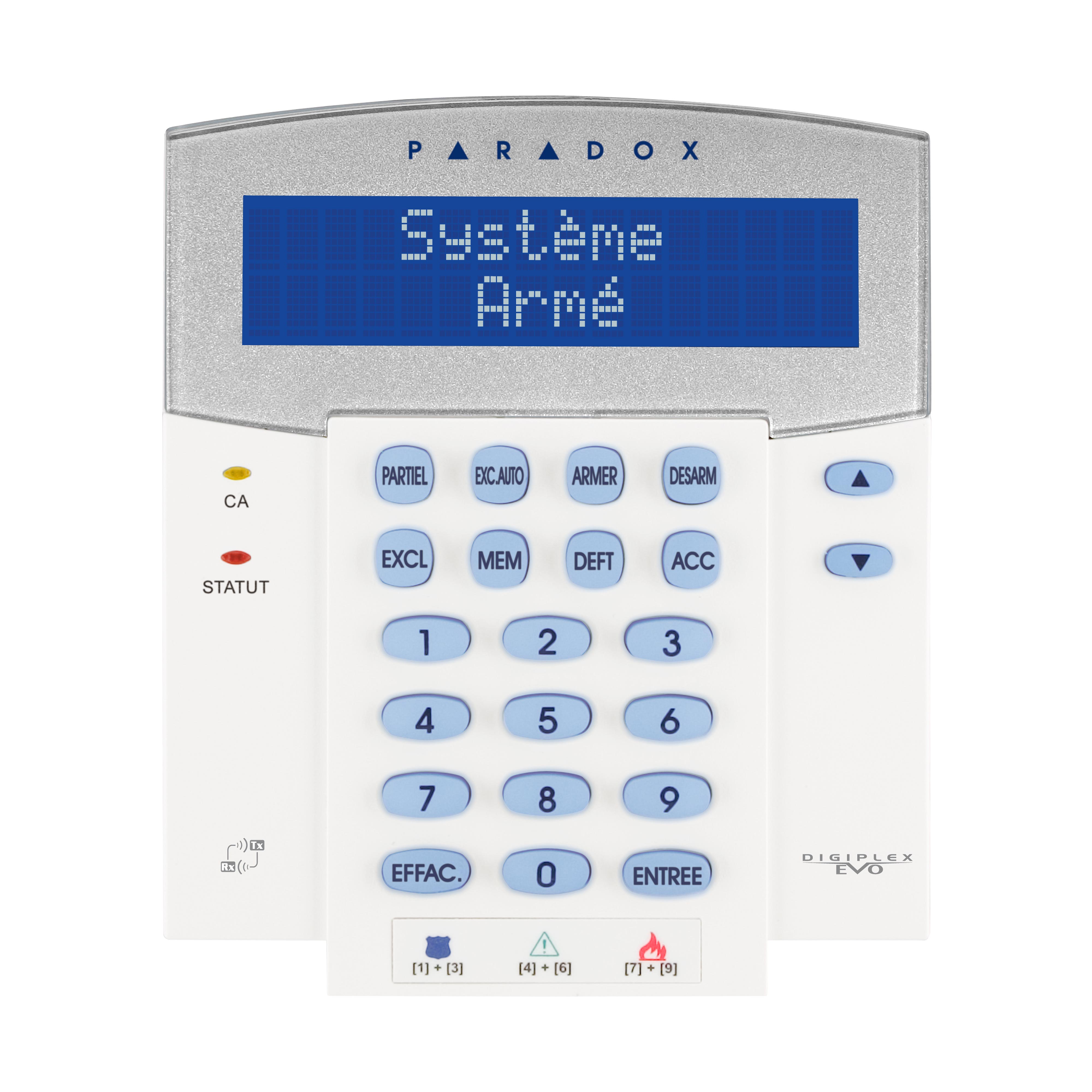

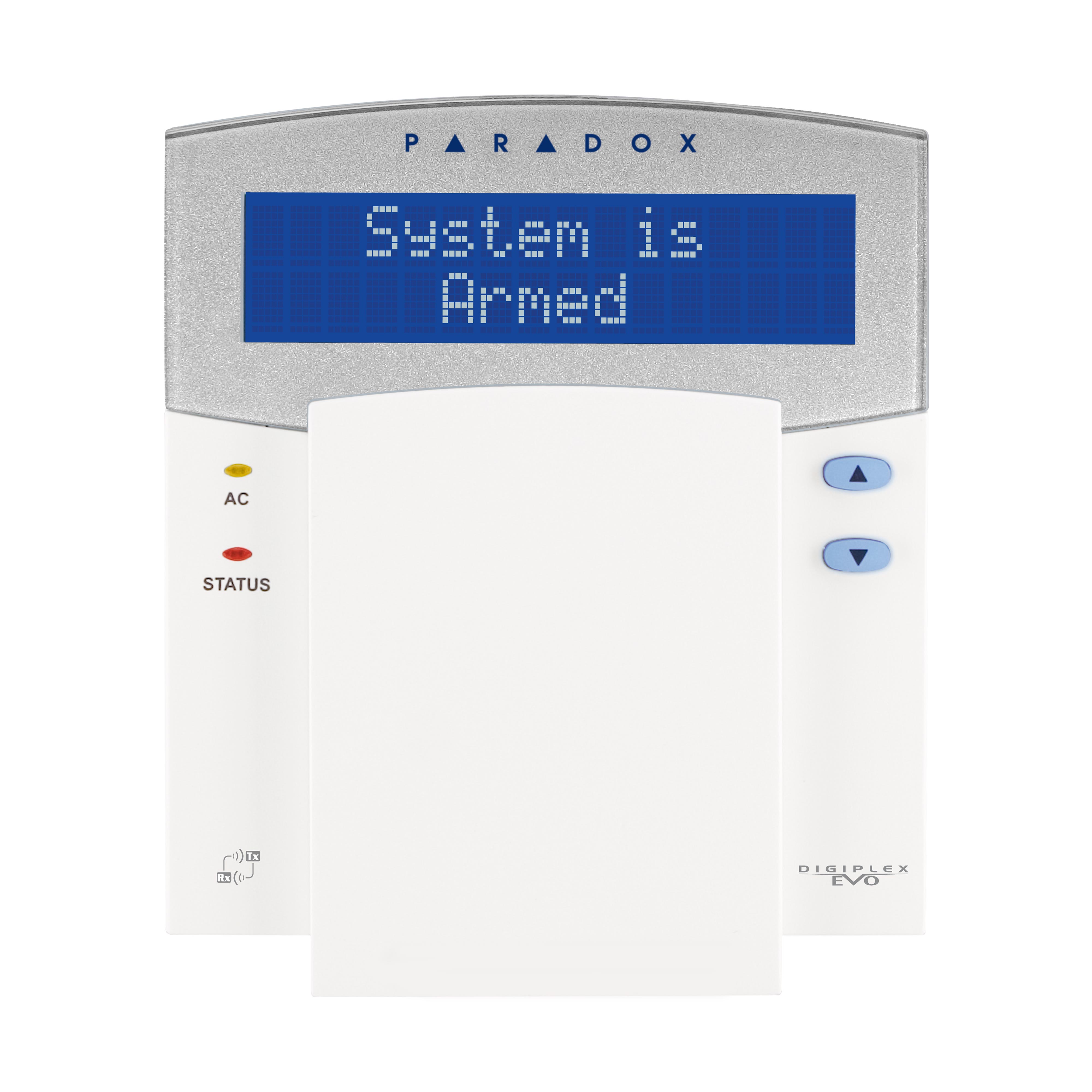

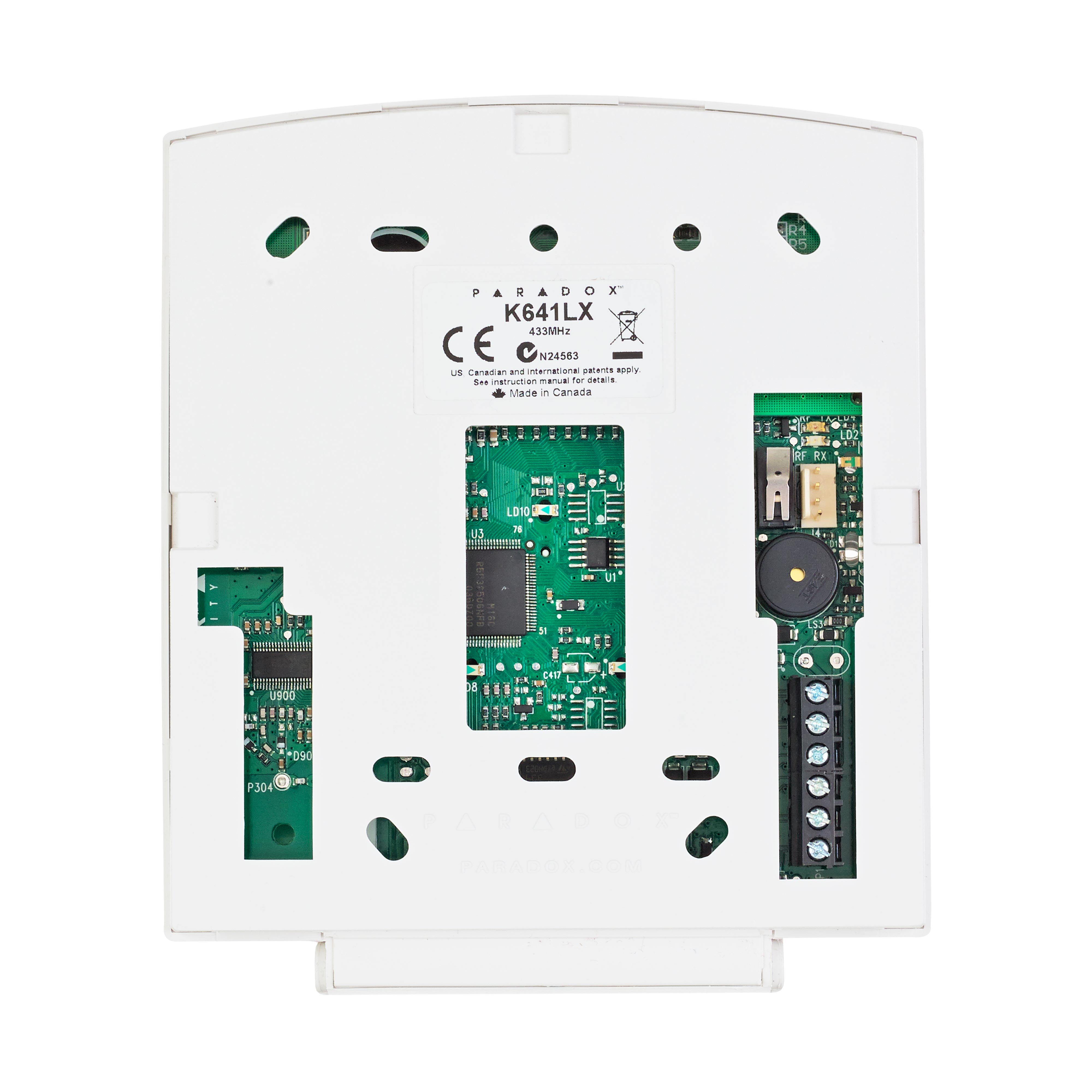

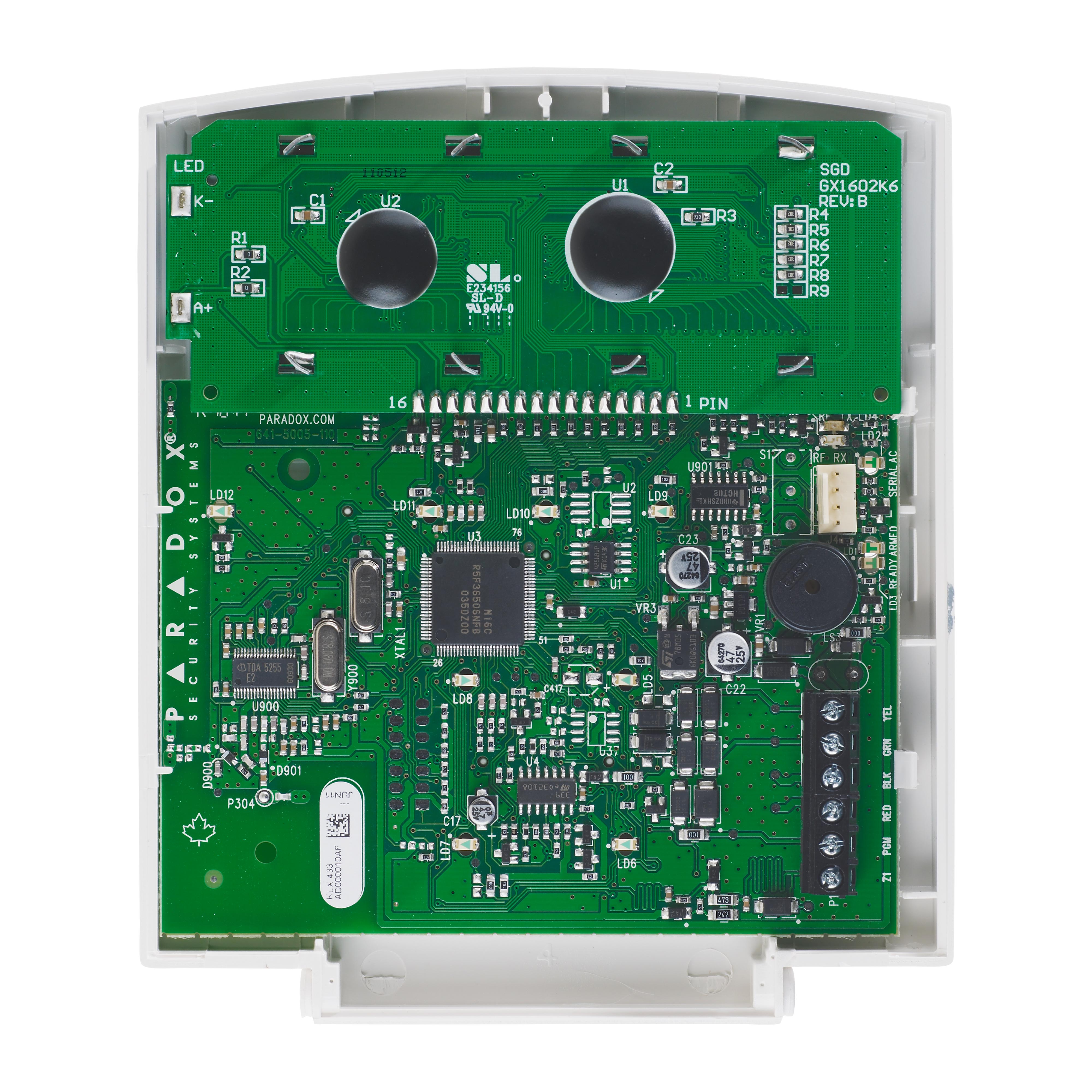

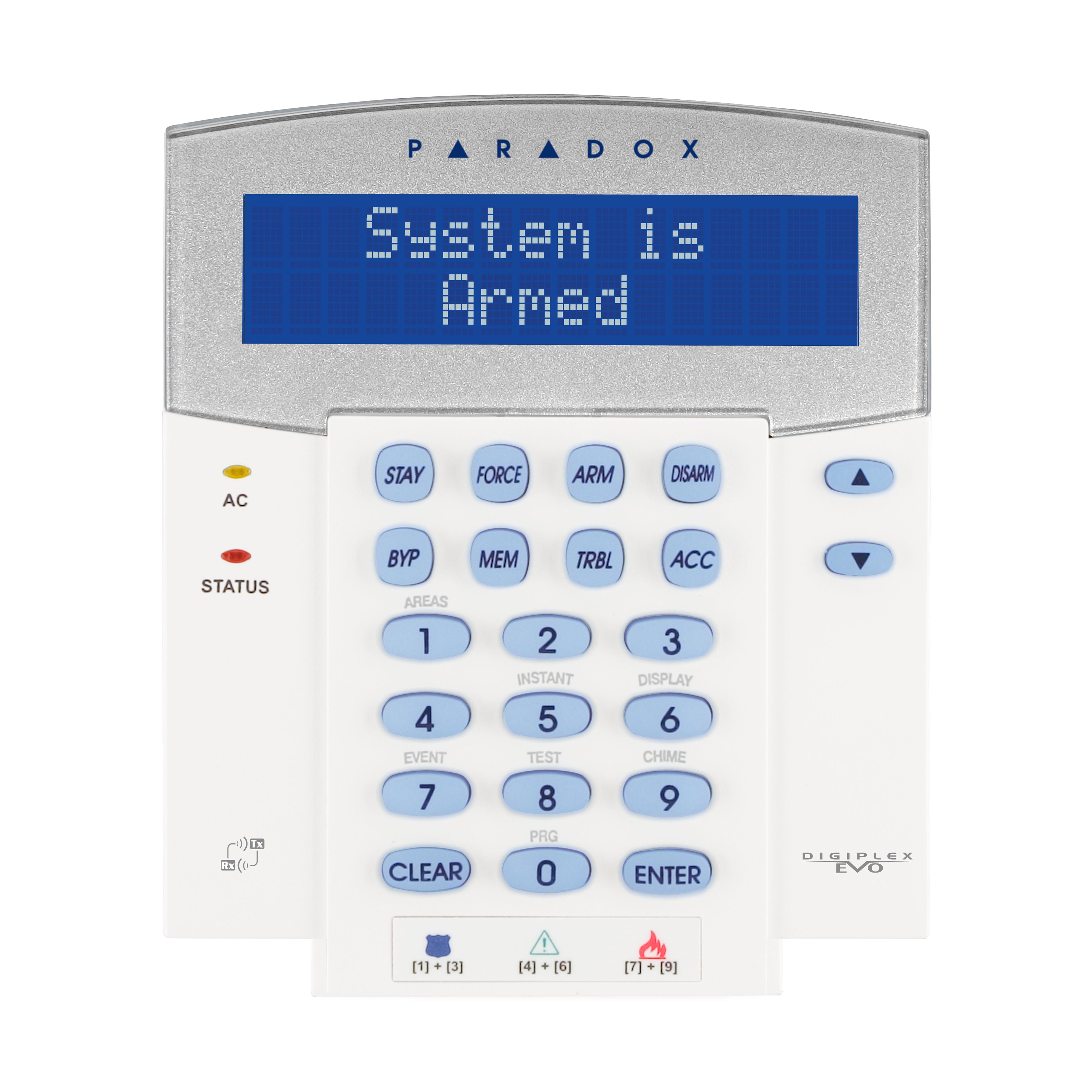

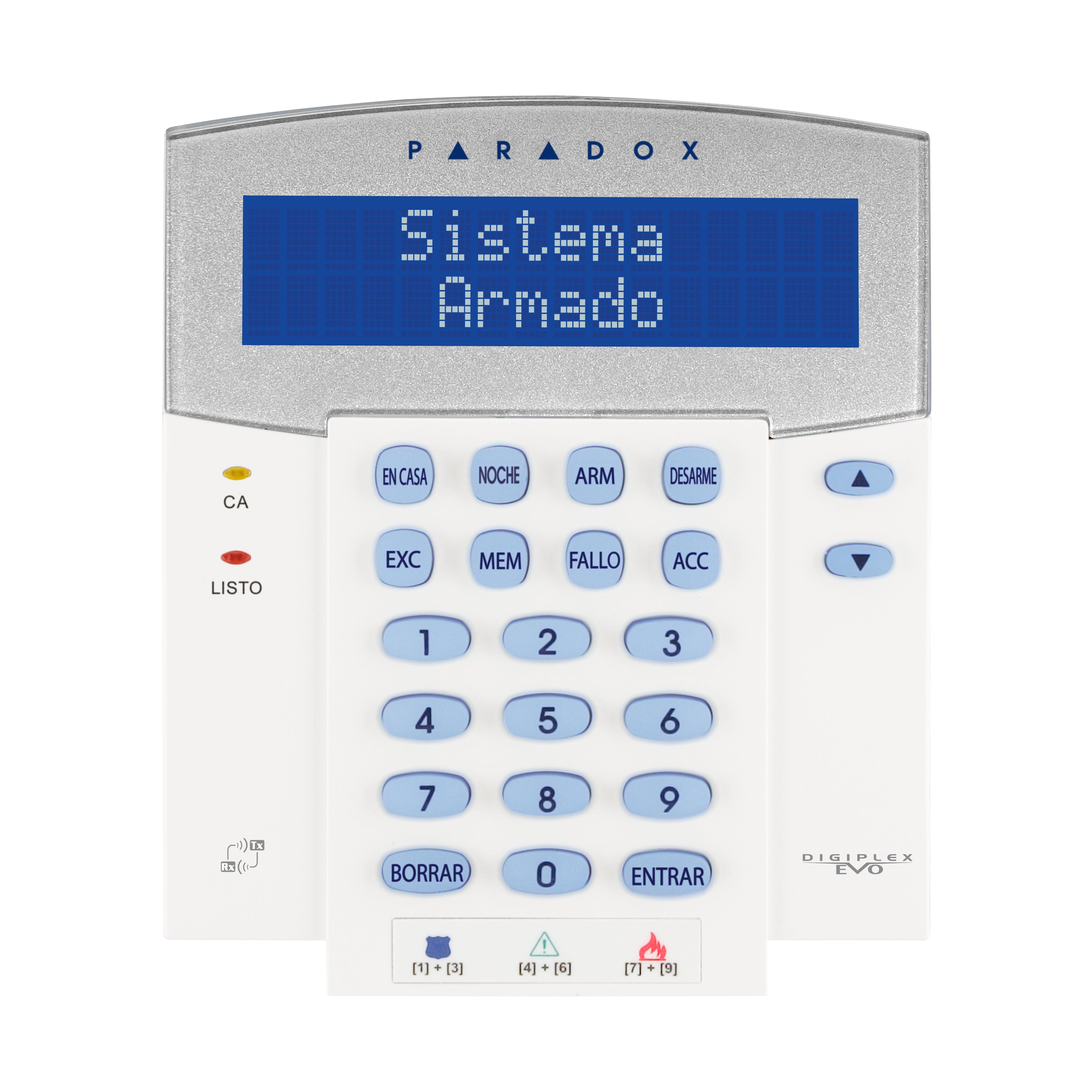

K641LX
Wired LCD Keypad with integrated RF Transceiver
Features
32-character blue LCD with programmable labels
Untitled
Controls and displays up to 192 zones in 8 partitions
Zone alarm display: the zones in alarm are shown until the system is disarmed
Built-in RF transceiver (433 or 868 MHz)
Simplified end-user remote control programming
Assign to one or more partitions
Independently set chime zones
14 one-touch action buttons
3 keypad-activated panic alarms
Adjustable backlight, contrast and scroll speed
Display time using the 12 or 24 hour format
In-field firmware upgradeable via 307USB and InField software
Multilingual display (Available in Bulgarian, Croatian, Czech, Dutch, English, French, German, Greek, Hebrew, Hungarian, Italian, Polish, Portuguese, Russian, Slovak, Slovenian, Spanish, Swedish, and Turkish)
Compatible with EVO192 and EVOHD
Input Voltage | 9 to 16 Vdc |
RF Frequency | 433 or 868 MHz |
Current Consumption | Maximum current 120 mA |
PGM Output | 1 |
Keypad Zone Input | 1 |
Connections | 4-wire communication bus |
Operating Temperature | 0 to 49 °C (32 to 120 °F) |
Dimensions | 15 x 8.5 x 2 cm (5.9 x 3.3 x 0.8 in.) |
Controls and displays up to 192 zones in 8 partitions
Zone alarm display: the zones in alarm are shown until the system is disarmed
Built-in RF transceiver (433 or 868 MHz)
Simplified end-user remote control programming
Assign to one or more partitions
Independently set chime zones
14 one-touch action buttons
3 keypad-activated panic alarms
Adjustable backlight, contrast and scroll speed
Display time using the 12 or 24 hour format
In-field firmware upgradeable via 307USB and InField software
Multilingual display (Available in Bulgarian, Croatian, Czech, Dutch, English, French, German, Greek, Hebrew, Hungarian, Italian, Polish, Portuguese, Russian, Slovak, Slovenian, Spanish, Swedish, and Turkish)
Compatible with EVO192 and EVOHD
Certificate:
CE
RCM
R-NZ
